| 항 목 |
내 용 |
| Type |
Desktop or Panel Mounted |
| Display |
Digital 4 Digits |
| Meas. Range |
1ppb～100vol% O2
Auto Range or Fixed Range |
| Analog Output Range |
0-1,000ppb/10/100/1,000ppm/1/10/100% |
| Repeatability |
±1.0% F.S (More than 1% range)
±2.0% F.S (Less than 1% range) |
| Gas Response |
Within 10 Seconds (90% Response) |
| Sampling Method |
Continuous Suction by Built-in Pump |
| Sample Gas Flow |
1,000 ~ 2,000 ml/min |
| Sensor Flow |
200±50ml/min |
| Gas Connection Port |
PT 1/8”(F) (Inlet, Bypass out)
PT 1/4”(F) (Outlet) |
| Reference Gas |
Atmospheric Gas |
| Warm-up Time |
Within 20 min |

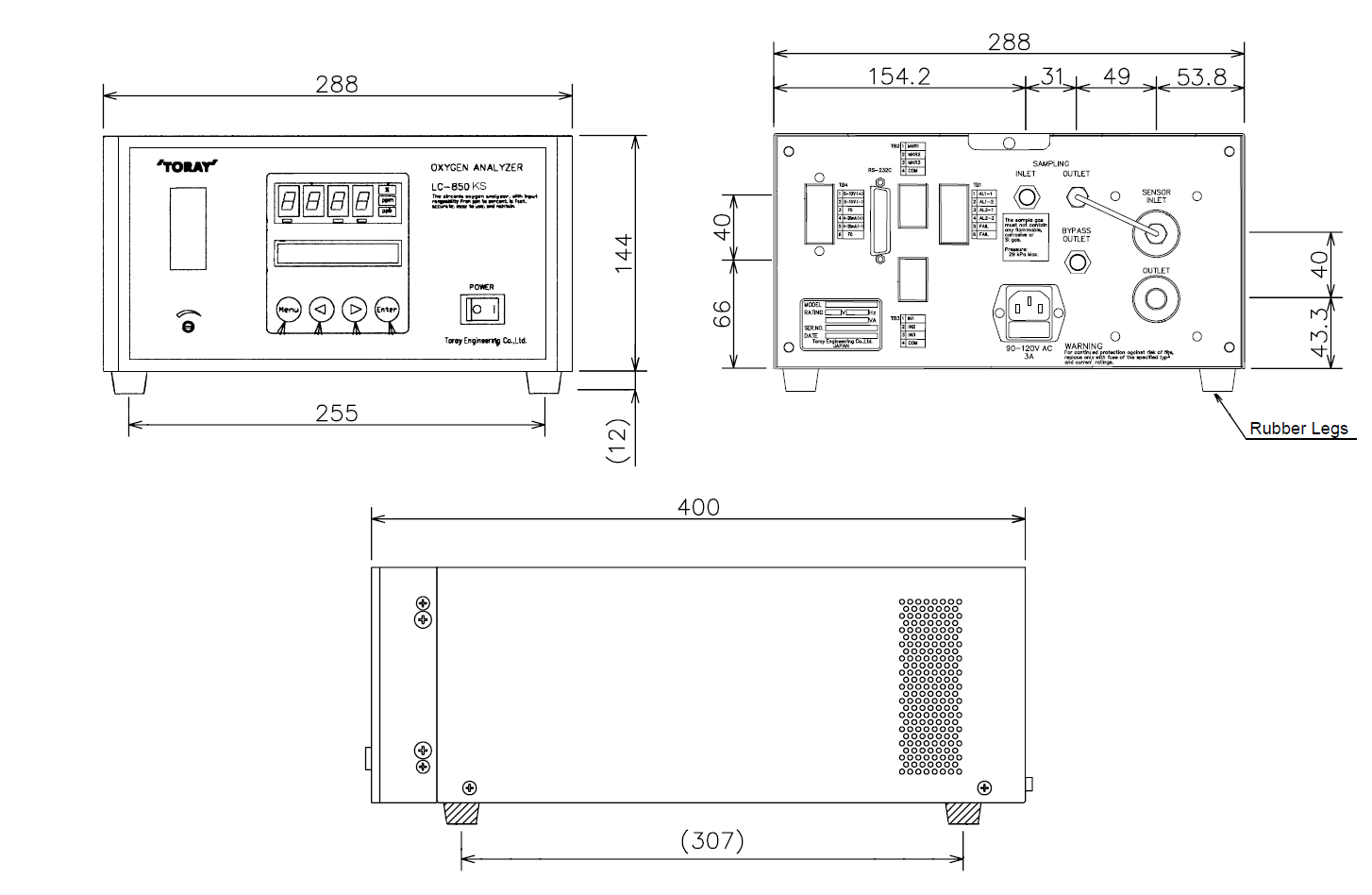

| Dimension |
288(W)×144(H)×400(D) Unit : mm |
| Weight |
Approx. 10kg |
| Analog Output |
DC 4～20mA and DC 0～10V |
| Transmission Output |
RS-232C compliant |
| Alarm Output |
High / Low alarm
Fail alarm (Instrument / Concentration Error)
Ready (Warm-up signal)
(No-voltage Contact / Contact capacity : 24VDC/AC or less, 0.1A or less) |
| Range Marker Output |
3 Points Output
(No-voltage Contact / Contact capacity : 24VDC/AC or less, 0.1A or less) |
| Power Source |
AC110V±5V 50/60Hz, 200VA |
| Sample Gas Conditions |
Maximum permissible pressure : 30kPa(0.03MPa) Max
Humidity : Dew point at or below ambient temperature
Temperature : 60°C or less |
| Installation Conditions |
Location : Indoors, Non-Explosion Area
Ambient Temperature : 0～40℃
Ambient Humidity : 45～85%RH, No Condensation |
