| 항 목 |
내용 |

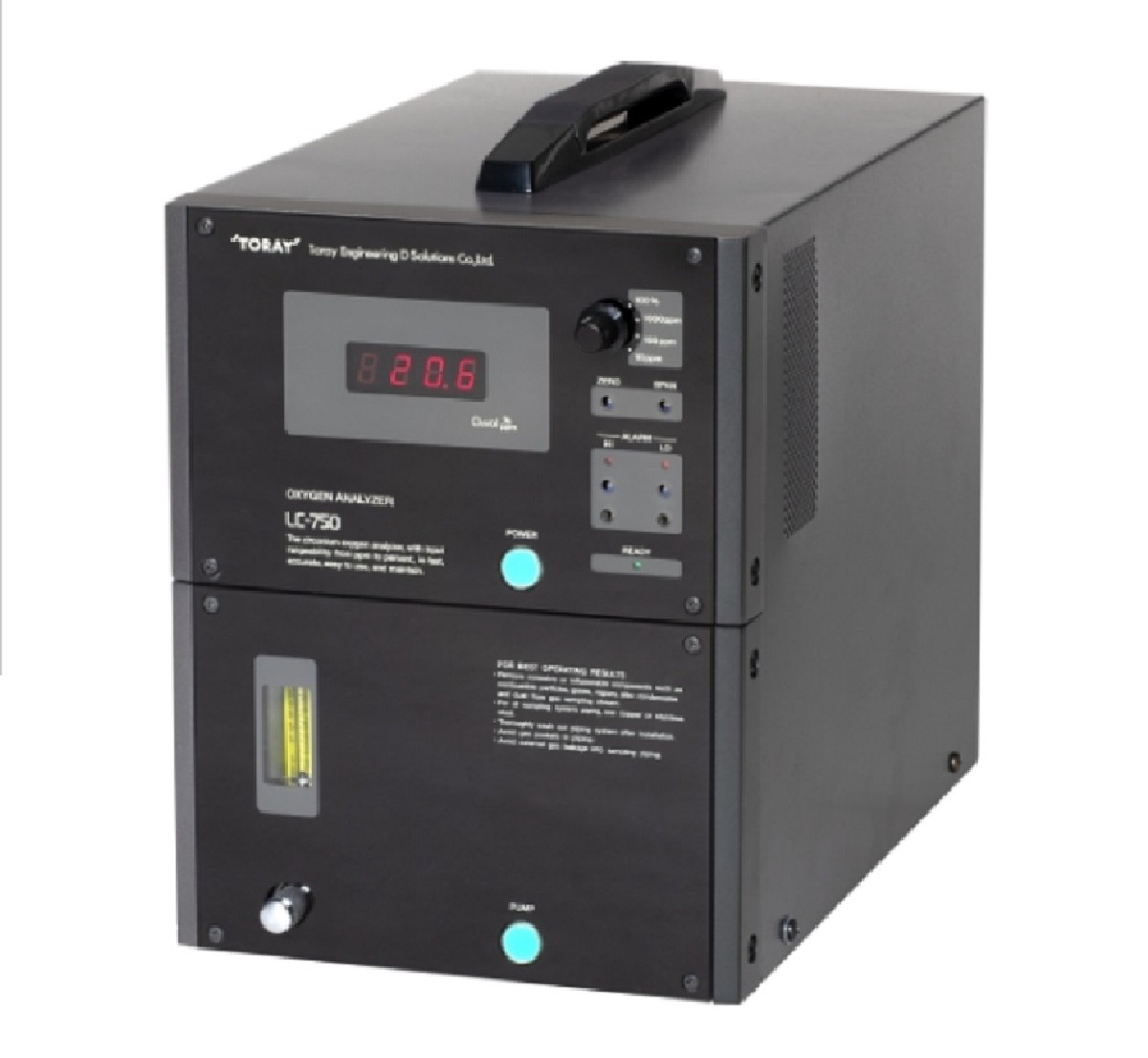

| Type |
Portable or Panel Mounted |
| Display |
Digital 3-Digits (Concentration Display) |
| Meas. Range |
0-0.1/1/10/100vol% O2 (LC-750H)
0-10/100/1,000ppm/100vol% O2 (LC-750L) |
| Repeatability |
±0.5% FS (More than 1% range)
±1.0% FS (Less than 1% range) |
| Gas Response |
Within 10 Seconds (90% Response) |
| Sampling Method |
Press fit (LC-750H-FCV, LC-750L-FCV)
Continuos Suction (LC-750H/PC-110･111, LC-750L/PC-120) |
| Sample Gas Flow |
Press fit : 100~300ml/min
Continuos Suction : 1,000~2,000ml/min |
| Sensor Flow |
200ml/min |
| Gas Connection Port |
PT 1/4"(F) |
| Reference Gas |
Atmospheric Gas |
| Warm-up Time |
Within 20 min |

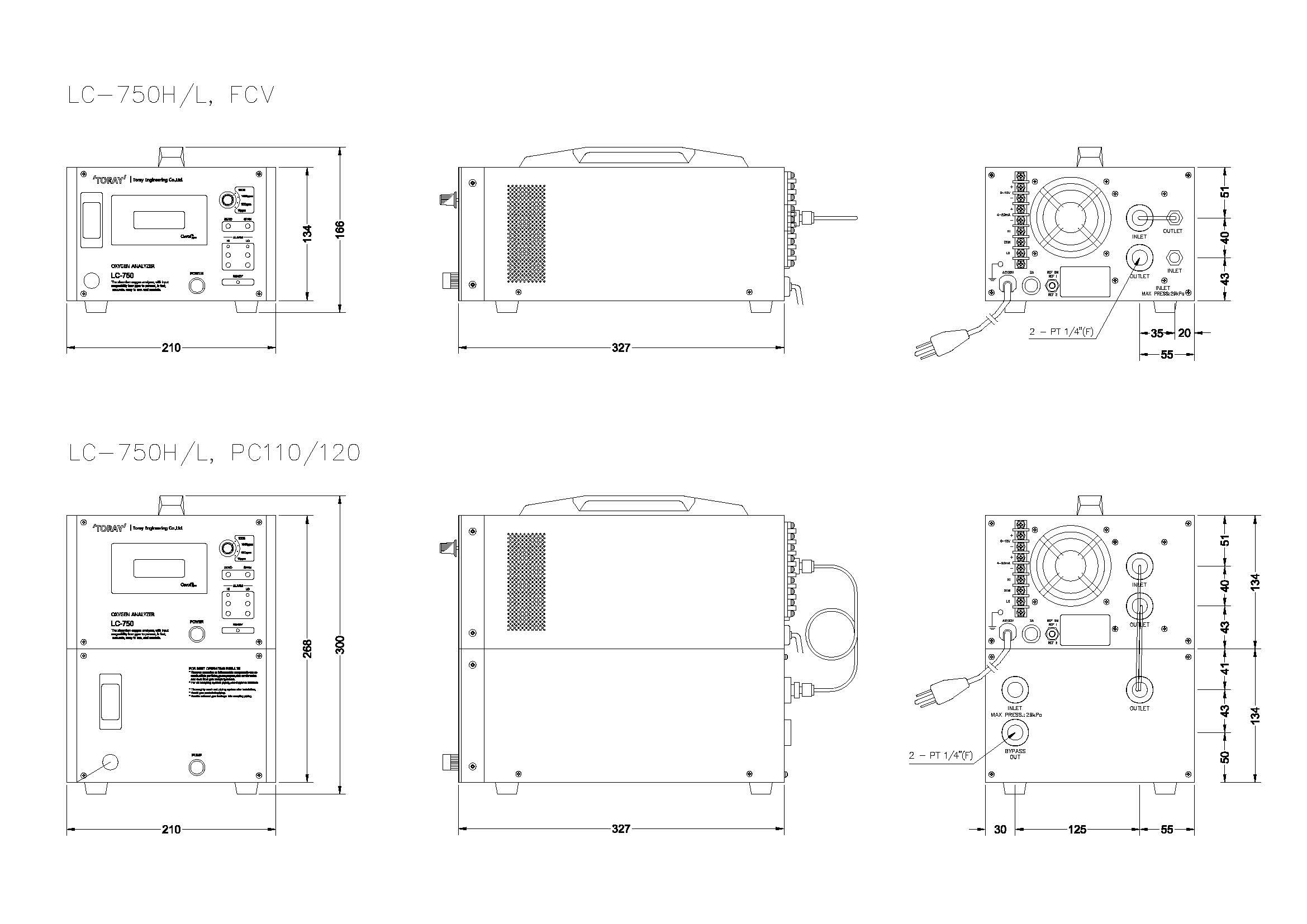

| Dimension |
210(W)×134(H)×326(D) mm (LC-750H-FCV, LC-750L-FCV)
210(W)×268(H)×326(D) mm (LC-750H/PC-110･111, LC-750L/PC-120) |
| Weight |
Approx. 6kg (LC-750H-FCV, LC-750L-FCV)
Approx. 10kg (LC-750H/PC-110･111, LC-750L/PC-120) |
| Analog Output |
DC 4~20mA and DC 0~10V |
| Alarm Output |
High / Low alarm
Contact Output: 1a, Independently
Capacity : AC110V, DC24V, 3A |
| Power Source |
AC 110±10V 50/60Hz, 200VA (AC 220V Option) |
| Sample Gas Conditions |
Maximum permissible pressure : 30kPa(0.03MPa) Max
Humidity : Dew point at or below ambient temperature
Temperature : 60°C or less |
| Installation Conditions |
Location : Indoors, Non-Explosion Area
Ambient Temperature : 0～40℃
Ambient Humidity : 45～85%RH, No Condensation |
