| 항 목 |
내 용 |
| Type |
Portable or Panel Mounted |
| Display |
4-Digit digital |
| Meas. Range |
1ppm～100vol% O2
Auto range or Fixed range |
| Analog Output Range |
0~0.5/5/10/100% |
| Repeatability |
±1% F.S (More than 1% range)
±2% F.S (Less than 1% range) |
| Gas Response |
Within 10 Seconds (90% Response) |
| Sampling Method |
Continuous Suction by Built-in Pump |
| Sample Gas Flow |
Approx. 1~2L/min |
| Sensor Flow |
60±10mL/min |
| Gas Connection Port |
PT 1/4”(F) (Inlet) |
| Reference Gas |
Atmospheric Gas |
| Warm-up Time |
Within 20 min |

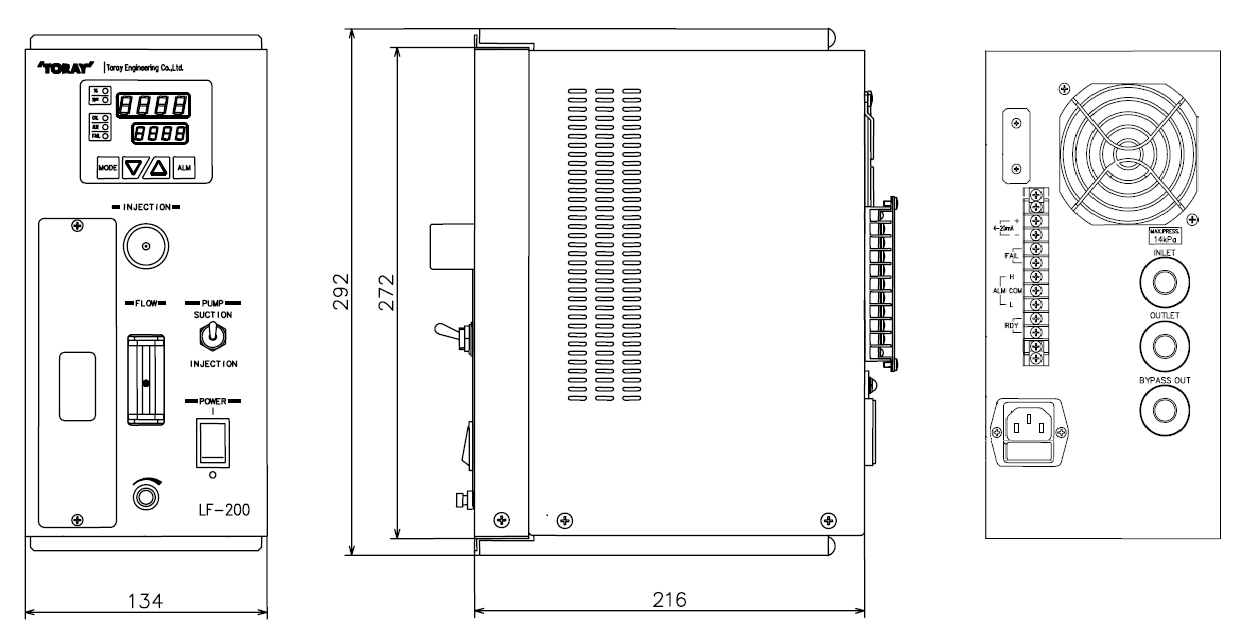

| Dimension |
134(W)×270(H)×216(D) Unit : mm |
| Weight |
Approx. 7kg |
| Analog Output |
DC 4～20mA, RS-232(optional) |
| Alarm Output |
High / Low alarm
Fail alarm (Instrument / Concentration Error)
Realy (Warm-up Signal)
(No-voltage Contact / Contact capacity : 30V DC/AC, below 0.5A) |
| Power Source |
AC220V±10V 50/60Hz, 200VA (AC110V Optional) |
| Sample Gas Conditions |
Maximum permissible pressure: 30kPa(0.03MPa) Max
Humidity : Dew point at or below ambient temperature
Temperature : 60°C or less |
| Installation Conditions |
Location : Indoors, Non-Explosion Area
Ambient Temperature : 0～40℃
Ambient Humidity : 45～85%RH, No Condensation |
